Inverter VFD
Reliable LS Electric VFD solutions for efficient motor control and optimized energy performance.

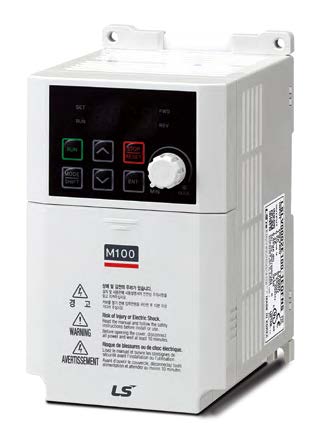

M100 | Micro Drive
An Optimal Compact Drive That is Applicable to Small Unit Machinery, Fans/Pumps and Conveyors. Space efficiency is increased with a compact product design, side-by-side installation and standard installation of Din Rail. Product reliability is improved with a built-in C2 EMC filter and application of a new UL standard. We offer two I/O types (standard type and advanced type), frequently-used parameter group, built in potentiometer and parameter copier/remote keypad options. We ensure
that users may easily install and use products.
Compact
M100 Drive is a small device that is cost effective. Space efficiency has increased with side by-side installation
Convenient Use
Din Rail installation is standard for M100 Drive, and RJ45 Port is provided for an easier connection with peripheral devices.
Intended Use
• Refrigerant compressor, air conditioner, refrigerator
• IAQ (Indoor Air Quality) industry sector
• Cargo terminal transfer line (Conveyor)
• Packaging machine transfer line (Conveyor)
• Unit machinery such as a lens grinder, spinning wheel and etc.
• 1Ø 115V : 0.2~0.75kW
• 1Ø 200V Class 0.1~2.2kW
Main Function

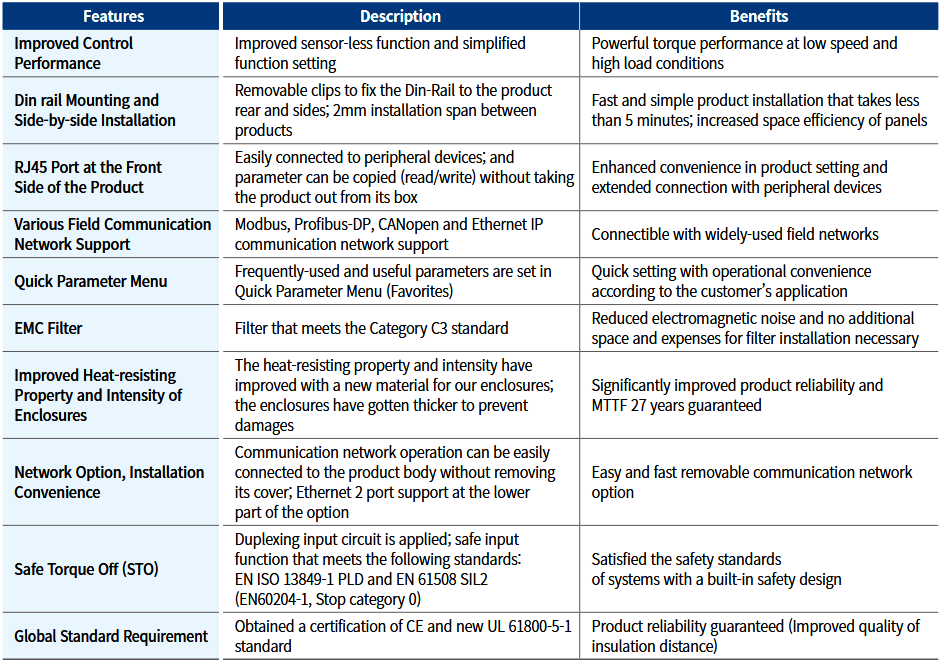

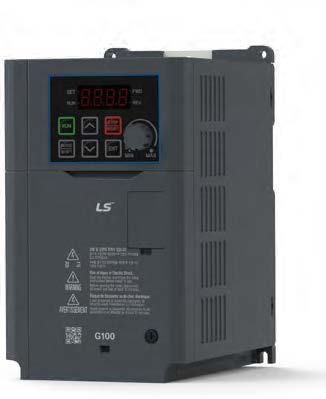

G100/G100C | General Drive
G100, an Optimal General Drive for Various Industrial Sectors! It is a general drive optimized for wide use in all industrial sectors with powerful sensor-less functions, improved hardware performance and certified high product reliability
Improved Torque Performance Through Powerful Sensor-less Vector Control Functions
With improved sensor-less vector control functions when compared
to our original standard drive, it maintains high torque performance
at low speed and efficiently controls the motor.
Various User Convenience Functions and Field Network Support
G100 enables compact installation with DIN rail and side-by-side installation.
It supports RJ port connection on the front of the product and greatly
enhances the convenience of connecting with peripheral devices. EtherNet/IP, Modbus-TCP, Profibus-DP, Support CANopen option, Built-in RS485
High Product Reliability
The heat-resisting property and intensity of our enclosure have
significantly increased, and the insulation distance improved with
our design that meets UL61800-5-1 standard
Intended Use
Used in all industries including metal processing, molding machines,
hydraulic / air conditioning equipment, food and beverage / textile
machinery, lifts /conveyors and environment / water treatment
• Cutting / Bending / Polishing machines
• Fans / Pumps
• Injection machines / Conveyors
• Dust collectors / Freezers
• Compressors / Blower
• Hoist / Lift
G100
- 3Ø 200V 0.4kW~22kW
- 3Ø 400V 0.4kW~22kW
G100C
- 3Ø 200V 0.4kW~4.0kW
- 3Ø 400V 0.4kW~4.0kW
Main Function

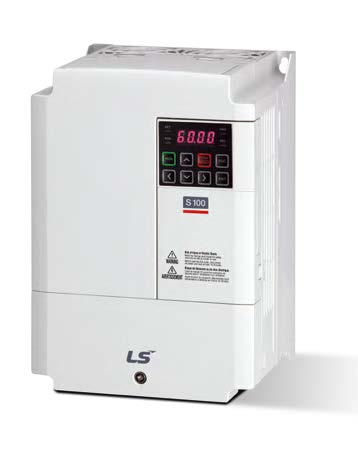

S100 | Standard Drive
S100, a High performance Standard Drive Boasting Power in a Compact Size. LS standard drive, S100 enhances added values of mechanical devices and equipment with its powerful sensor-less control and a wide range of user-centered functions. It meets the global standard and support various field networks. In particular, IP66 NEMA4X series are fully protected from foreign substances such as fine dust and water sprayed with a high-pressure sprayer.
Efficient Space Utilization
Space efficiency is maximized with its compact size, which is 40%
smaller than the original product, and side-by-side installation.
Various Field Network Support
The drive supports the following networks: EtherCAT, EtherNet/IP,
Profibus-DP, Modbus TCP, CANopen and etc
IP66/NEMA4X (PDS/Non-PDS)
The drive acquired the highest class IP66 / NEMA4X and it can be used without trouble under poor environment or even when externally exposed
Intended Use
Applied to the following industries: metal, elevator/escalator, textile machinery, shipping, food and beverage, pulp/paper, coal mine, oil/gas and water treatment
• Hoist (hoist, gantry, trolley)
• Winder (loom, knitting machine)
• Mixer (agitator)
• Compressor
• Centrifugal separator
• General crane
• Conveyor
- 1Ø 200V Class 0.4~2.2kW
- 3Ø 200V Class 0.4~15kW
- 3Ø 400V Class 0.4~75kW
IP66
- 1Ø 200V Class 0.4~2.2kW
- 3Ø 200V Class 0.4~15kW
- 3Ø 400V Class 0.4~22kW
Main Function

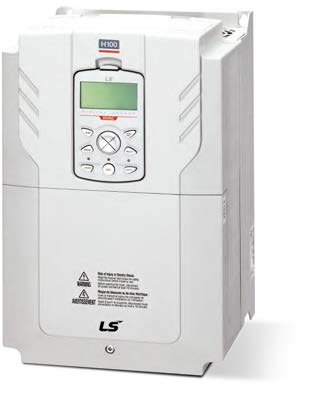

H100 | Fan & Pump Drive
Significant Energy Saving With LS Drive Solutions. This product is developed to build an environment-friendly system that realizes significant energy saving in the industrial field of fans/pumps and water treatment based
on the leading drive solutions
Safe System Control
For safe pump operation, the following functions are provided for
users: Soft Fill; start and stop slope adjustment; valve deceleration
time setting; multi-motor control; and scheduling operation.
Optimized for HVAC and Water Treatment
User-friendly functions for convenient use of fans/pumps such as
pump clean, auxiliary motor PID compensation and load tuning.
Intended Use
Applied to the following industries: building, metal, pulp/paper,
coal mine, oil/gas and water treatment; (fan/pump, dryer)
Marine Certifications
ABS, BV, CCS, DNV/GL, KR, LR, NK, RINA, RS
- 3Ø 200V 0.75~18.5kW
- 3Ø 400V 0.75~500kW
Main Function

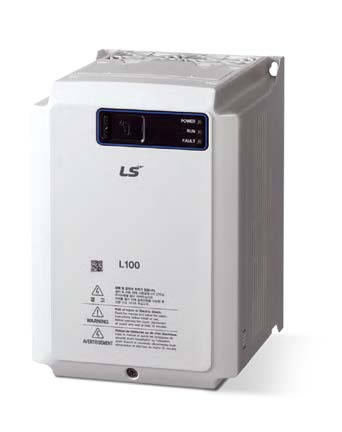

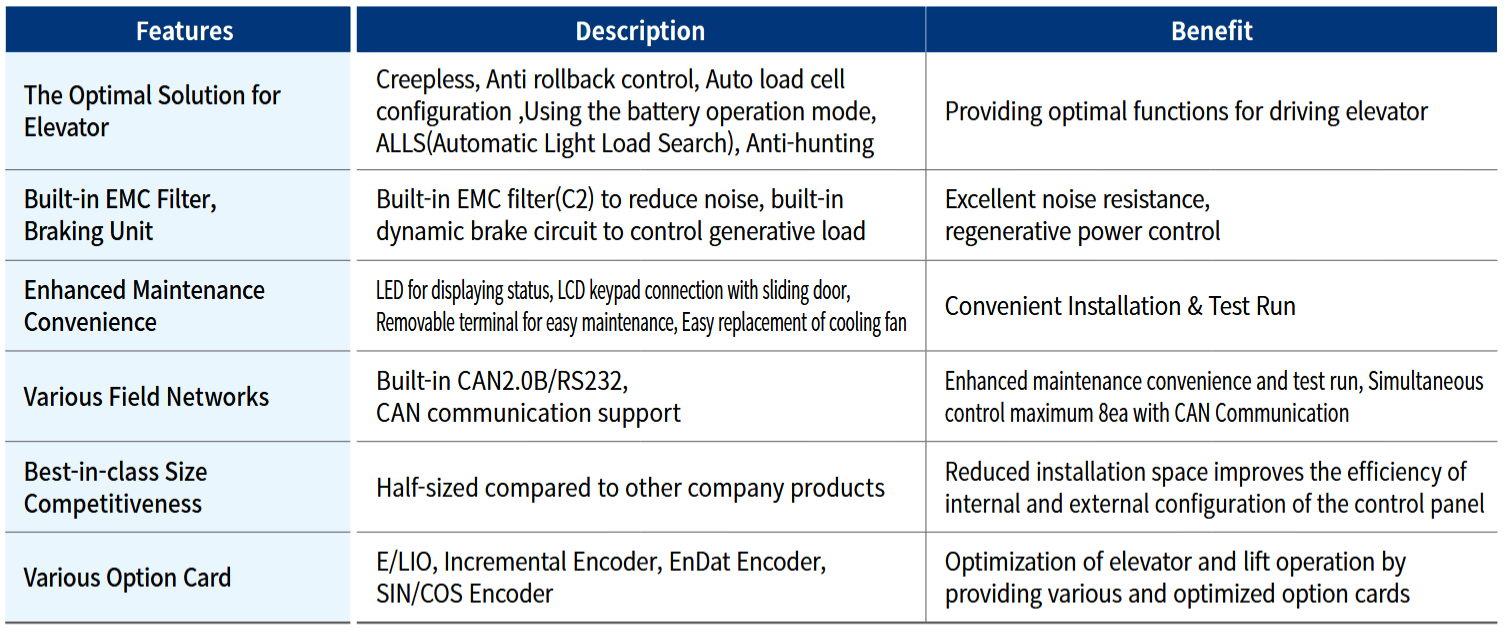

L100 | Drive For Lift Application
L100 series, the optimal solution for lifting applications. Optimized for elevators and load lifting operation, the LS ELECTRIC L100 series offers best-in-class performance. With size-optimized solutions for these applications, the L100 provides essential functions and options,
which further enhance customer value
Best-in-class size competitiveness
Along with performance enhancement, size was reduced by applying heat dissipation analysis and utilising a 3D design process.
Optimization for Elevator/Lift
By Premium High Performance Vector Control, L100 can drive both IM/PM loads with optimal control algorithm (Voltage/Speed/Flux) for smooth and precise operation. it saves your commissioning time through optimal Auto-tuning and essential Functions for Elevator operation
Intended Use
• Elevator
• Lift
• Automatic warehouse parking facility
- 3Ø 380~480V 5.5~22kW
Main Function

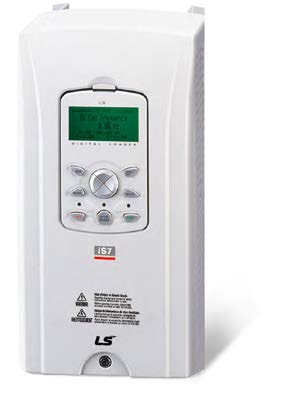

iS7
iS7, a High-performance and High-reliability Drive. iS7 is a high-performing standard drive that is applicable to any working environment.
Powerful Sensorless Vector Control
Sensorless vector algorithms developed with our accumulated
technologies that demonstrate powerful control of low-speed
torque and speed accuracy are built-in.
A Variety of Functions
V/F, V/F PG, slip compensation, sensorless vector, and sensored
vector control are possible. LS satisfies any customer's needs
through various functions such as torque control, droop control,
KEB, Flying Start, and Easy Start.
- 3Ø 200V 0.75kW~90kW
- 3Ø 400V 0.75kW~450kW
Main Function

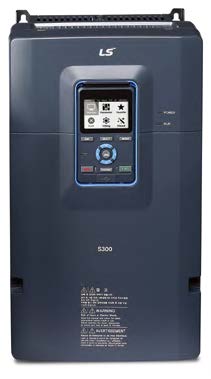

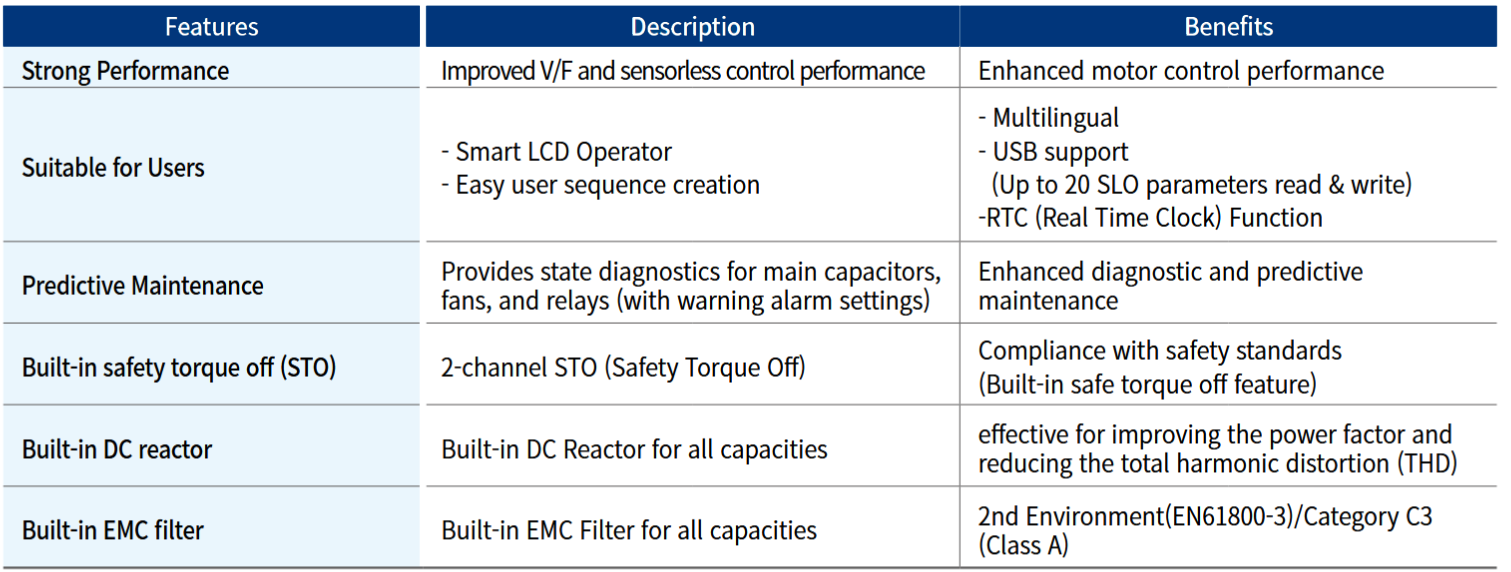

S300 | High Performance Drive
Expect more with even stronger performance S300. Experience the incomparable, high-quality performance of the LS high-performance S300 series
Strong Performance
• Improved V/F and sensorless control performance
• Enhanced motor control performance
Space Efficient Design
• 10-40% reduction in size by capacity
• Built-in DC Reactor and EMC Filter for all capacities
Predictive Maintenance
• Predicts and assesses lifespan for the main cap, fan, and relay
• Gold plate PCB and hole-plugging applied
Suitable for Users
• Smart LCD Operator
• Easy user sequence creation
- 3Ø 200V 0.4kW~75kW
- 3Ø 400V 0.4kW~220kW
- 3Ø 400V 250kW~400kW
(Coming soon)
Main Function
