Programmable Logic Controller (PLC)
Reliable control solutions for efficient and intelligent industrial automation.
LS Electric Programmable Logic Controller (PLC) provides reliable and high-performance control solutions for modern industrial automation systems. As an official distributor, Tamiang LS Electric supplies original LS Electric PLC products designed for precise control, stable operation, and flexible integration across various industrial applications, supported by professional technical consultation and responsive after-sales support.

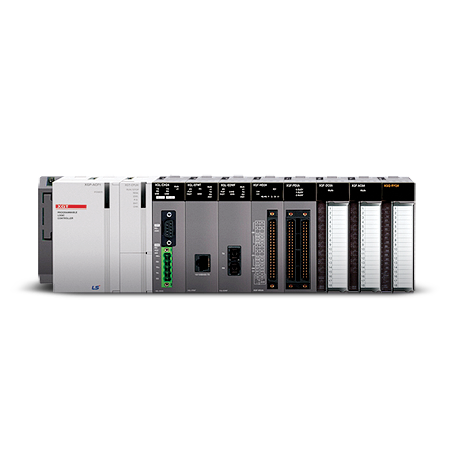

XGT Series (XGK, XGI, XGR)
XGT series incorporate the latest technological achievements in Programmable Logic Controller by experience and dedication to quality in design and manufacturing
- XGK: Ladder Programming
- XGI: IEC Standard Programming
- XGR: Redundancy System

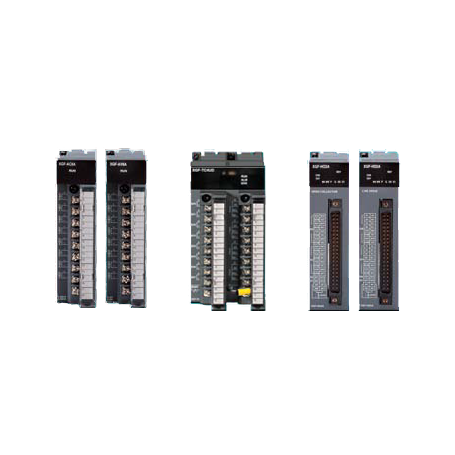

XGT Special Module
For sensor switch, control of temperature, weight, flow, motor, actuator, and even highly precise positioning control, XGT series offer diverse special modules such as analog, HSC, and positioning to satisfy complicated industrial needs.
XGK CPU (LS Standard Ladder Programming)
XGK-CPUUN
- Program capacity: 256K steps
- I/O points: 6,144
- I/O device point: 65,536 (Remote I/O)
- Processing speed: 8.5ns/step
XGK-CPUSN
- Program capacity: 64K steps
- I/O points: 3,072
- I/O device point: 65,536 (Remote I/O)
- Processing speed: 8.5ns/step
XGK-CPUU (Ultra capacity)
- Program capacity: 128K steps
- I/O points: 6,144
- I/O device point: 32,768 (Remote I/O)
- Processing speed: 28ns/step
XGK-CPUH (High performance)
- Program capacity: 64K steps
- I/O points: 6,144
- I/O device point: 32,768 (Remote I/O)
- Processing speed: 28ns/step
-Contact Us for More XGK CPU Products-
XGI CPU (IEC Standard Programming)
XGI-CPUUN
- Program capacity: 2MBytes
- I/O points: 6,144
- I/O device point: 131,072 (Remote I/O)
- Processing speed: 8.5ns/step
XGI-CPUU
- Program capacity: 1MBytes
- I/O points: 6,144
- I/O device point: 131,072 (Remote I/O)
- Processing speed: 28ns/step
-Contact Us for More XGI CPU Products-

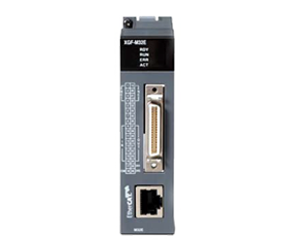

XGT Motion Module
- 32 axes (master) and 4 axes (virtual) control
- EhterCAT CoE supported servo drive
- Communication cycle : 1ms
- Built-in DI/DO 8 points each and EtherCAT I/O 512 points
- Program 2MB
- External encoder input 2ch (line drive)
- Max. transmission distance : 100m

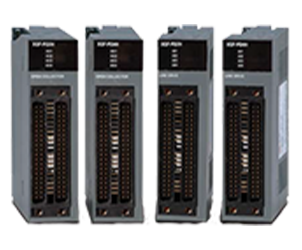

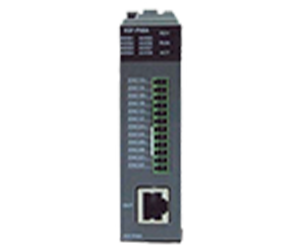

XGT Positioning Module Features (Network type)
- XGF-PN8A : Dedicated LSIS EtherCAT Network Support (XGT Servo N series)
- XGF-PN8B : Standard EtherCAT Network Support(Standard EtherCAT Servo)
- Direct connect with servo driver Max 8
- 2~8 axes linear interpolation, 2axes circular interpolation, 3axes helical interpolation
- Position, speed, feed control is possible through the various operation
- Parameters, the operation data stored in the FRAM (No Battery)
- Up to eight different types of CAM data for CAM control
- Available for absolute position system (When applying absolute encoder type)
XGT Positioning Module Features (Pulse type)
- Max 4Axes, Max pulse output 4Mpps
- inear/Circular/ellipse/helical interpolation
- Asymmetric acceleration and deceleration driving
- Speed control, position control, speed/position control, position/speed control, Feed, CAM control
- FRAM parameter
- XG-PM monitoring, simulation, trace
- CAM profile program

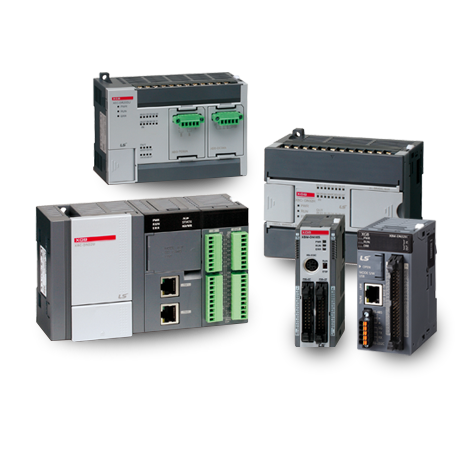

XGB Series
XGB is a micro PLC that offers maximum performance at minimum cost. With its high functionality, XGB supports simple control systems to complex tasks. Strengthening its communication functions, XGB offers user-oriented integrated control. Based on its strengths, XGB can be used in many application fields.

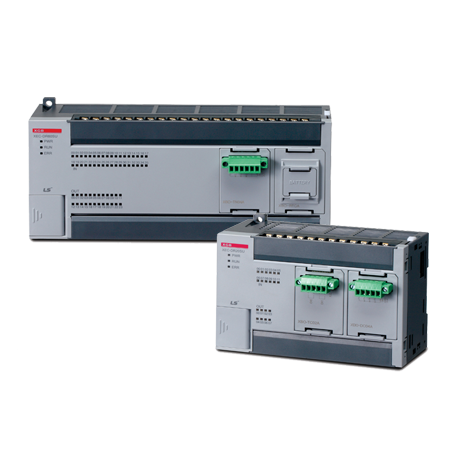

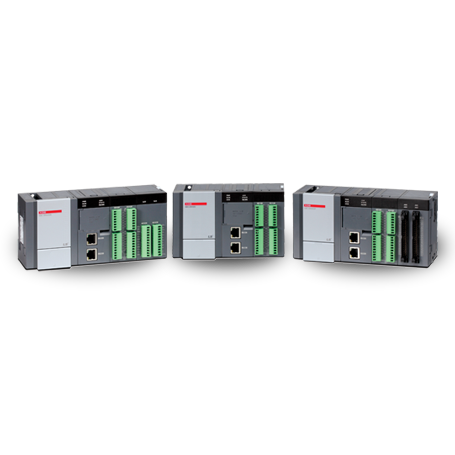

XBC/XEC U-Type
Various expansion :
-
Max. 352 I/O points
-
Max. 2 communication modules
-
RS-232C, RS-422/485, Ethernet, CANopen, Profibus-DP, DeviceNet, EtherNet/IP, RAPIEnet
Data logging function :
- SD memory format, FTP link, Diagnosis
Dualport Etherenet :
-
2-port Ethernet switch
-
FTP server support
Web Server :
-
PLC monitoring
-
Time synchronization
-
E-mail service

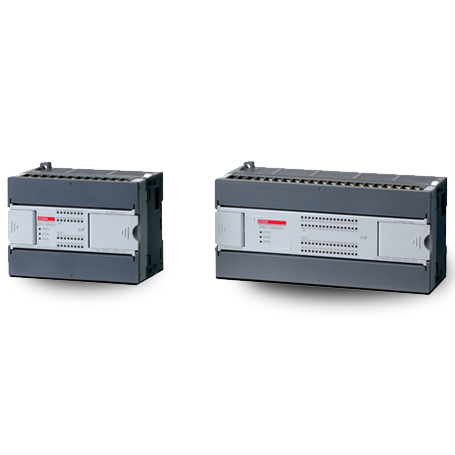

XBC/XEC H-Type
Various expansion :
- Max. 384 I/O points
- Max. 2 communication modules
- RS-232C, RS-422/485, Ethernet, CANopen, Profibus-DP, DeviceNet, EtherNet/IP, RAPIEnet
Powerful & various built-in functions :
- Cnet 2 ports
- High-speed counter
- Positioning (Tr. type only)
XBC/XEC SU-Type
Various expansion :
- Max. 284 I/O points
- Max. 2 communication modules
- RS-232C, RS-422/485, Ethernet, CANopen, Profibus-DP, DeviceNet, EtherNet/IP, RAPIEnet
Powerful & various built-in functions :
- Cnet 2 ports
- High-speed counter
- Positioning (Tr. type only)

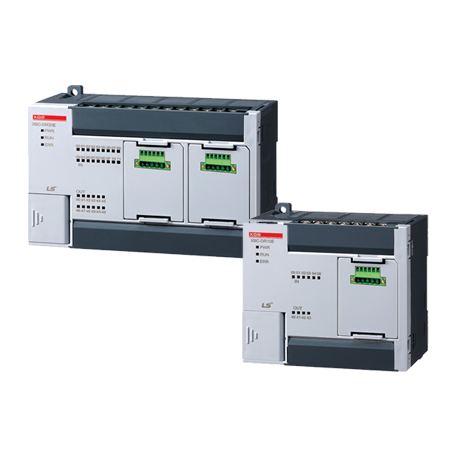

XBC/XEC E-Type
Various expansion :
- Max. 38 I/O points
- Option: Digital I/O, Analog I/O, Memory, etc.
Built-in functions :
- Cnet 1 ports
- High-speed counter

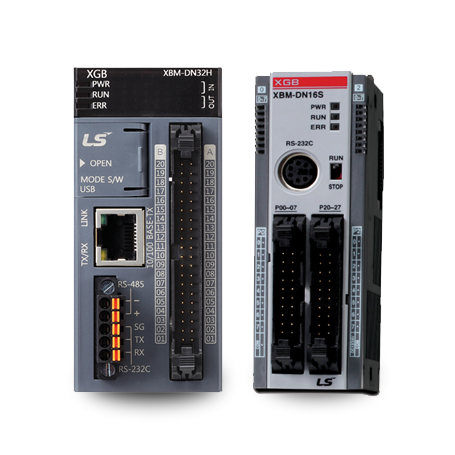

XBM/XEM Type
Various expansion :
- Max. 256 I/O points
Built-in functions :
- Ethernet 1 port (H-type only), Cnet 2 ports
- High-speed counter
- Positioning
Smart I/O Series
Smart I/O for efficient and simple system Using Smart I/O, users can reduce the wiring and control I/O in real time, which means it helps to realize a simple and effective system. Also it provides various I/O(DC/TR/Realy, Analog) and supports various communication (RAPIEnet, EtherNet/IP, Modbus TCP, Rnet, DeviceNet, Profibus-DP, RS422/485)

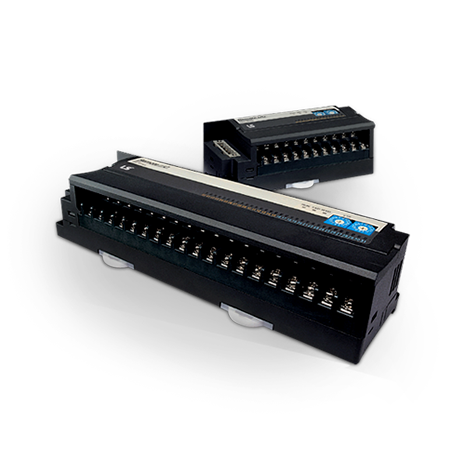

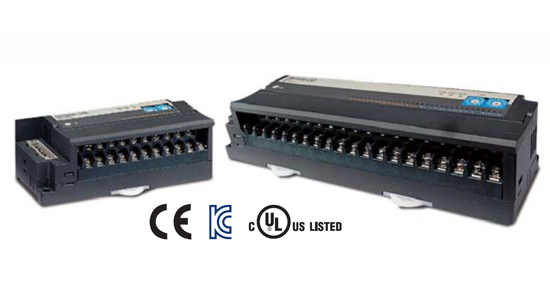

Smart I/O (Stand Alone type)
- Wiring reduction and real time control of distributed I/O
- Supporting Rnet, DeviceNet, Profibus-DP, MODBUS(RS-422/485), RAPIEnet(RJ-45)
- Various I/O (DC/TR/Relay) modules with a unit of 16/32 points

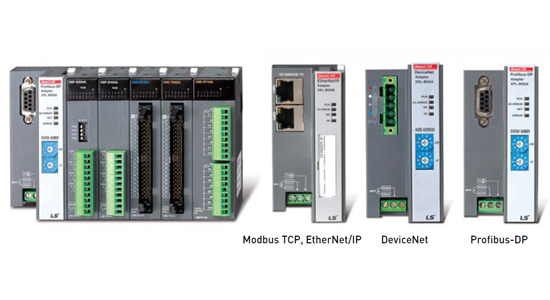

Smart I/O (Expandable type)
- Easy configuration of remote systems using XGB expansion I/O
- Up to 8 modules expandable with a network adapter
- Max. 256-point digital I/O
- Max. 16 channel analog I/O
- Network adapter: Profibus-DP, DeviceNet, Rnet, Modbus TCP, EtherNet/IP

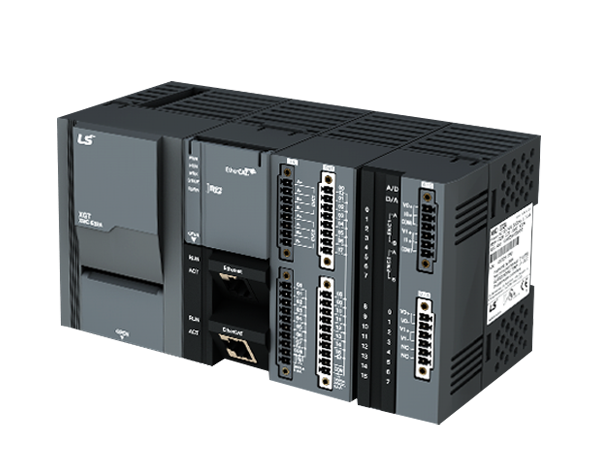

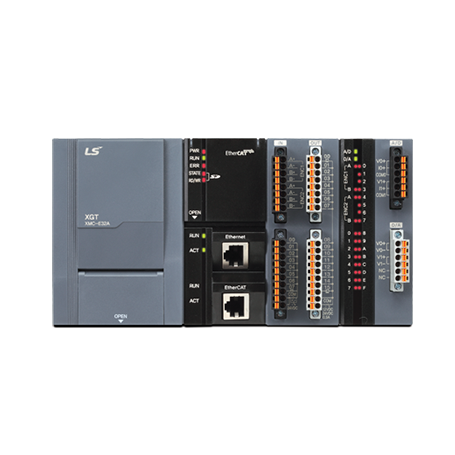

Motion Controller
The XMC-E32A/E32C delivers high performance EtherCAT-based motion control functions along with a variety of embedded functions and high-tech capabilities specialized for numerical control and robots. In addition to LS ELECTRIC PLC, HMI and servo products, the XMC-E32A/E32C will help you create an even better and optimal solution.
Features
- High-speed program processing: 6.25ns (Basic command)
- EtherCAT-based high speed cycle times: 0.5/1/2/4ms (Same as main task cycle time)
- Various built-in functions : 8 digital inputs/16 digital outputs, Encoder inputs (2 ch.), Ethernet,
Analog Input (2 ch.)/Output (2 ch.) E32A, RS-232C/RS-485_E32C - Robot control: Delta3, Delta3R, Linear Delta, etc.
- XG5000 software for programming and monitoring
