Servo/Motion
We have dreamed of a true realization of smart factory automation of innovative Servo/Motion solutions to introduce to the future of factory automation. LS ELECTRIC Servo and Motion products will help you create an even better and optimal solution.

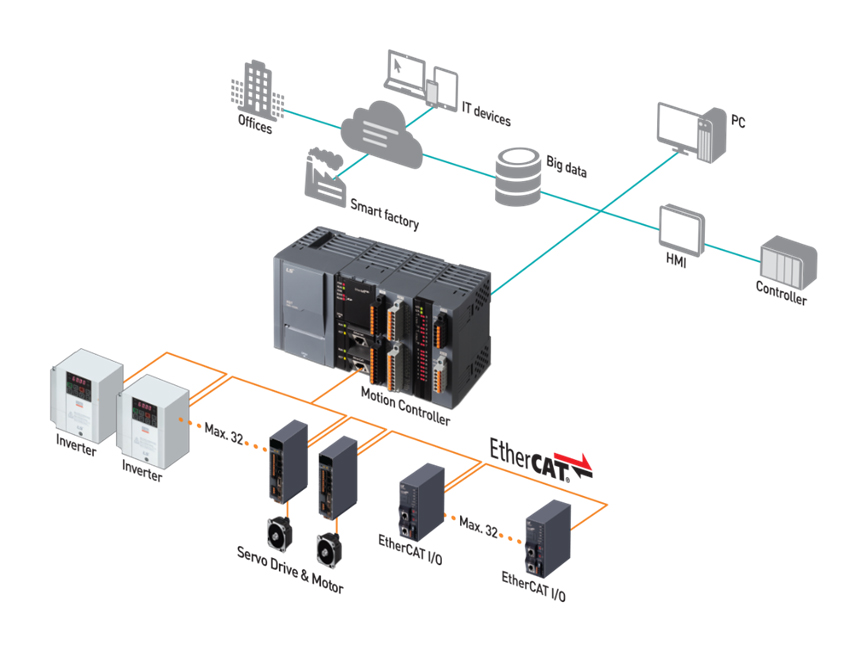

Motion Controller
Take Your First Step into New Future of Smart Motion.
Innovation of the 4th Industrial Revolution, the Motion Controller delivers an optimized solution to a system that has a need for motion control. Motion controller realizes automation of manufacturing industries with a cost-effective, yet easy and user -friendly engineering solution

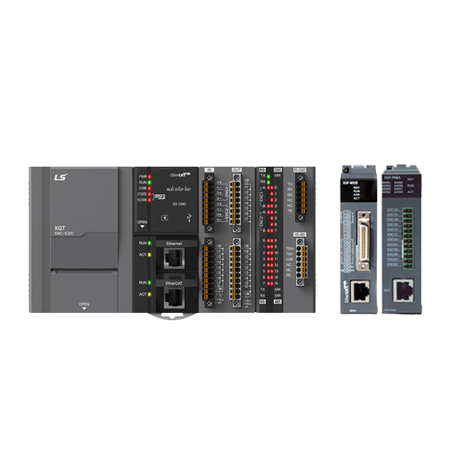

XMC Motion Controller
The XMC-E32A/E32C delivers high performance EtherCAT-based motion control functions along with a variety of embedded functions and high-tech capabilities specialized for numerical control and robots. In addition to LS ELECTRIC PLC, HMI, and servo products, the XMC-E32A/E32C will help create an even better and optimal solution.
Features
- High-speed program processing: 6.25ns (Basic command)
- EtherCAT-based high speed cycle times: 0.5/1/2/4ms (Same as main task cycle time)
- Various built-in functions
- 8 digital inputs/16 digital outputs, Encoder inputs (2 ch.), Ethernet,
Analog Input (2 ch.)/Output (2 ch.)_E32A, RS-232C/RS-485_E32C
- 8 digital inputs/16 digital outputs, Encoder inputs (2 ch.), Ethernet,
- Robot control: Delta3, Delta3R, Linear Delta, etc.
- XG5000 software for programming and monitoring

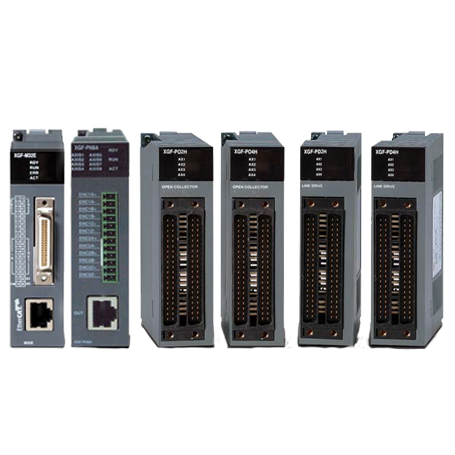

XGT Motion & Positioning Module
XGT Motion Module
- 32 axes (master) and 4 axes (virtual) control
- EhterCAT CoE supported servo drive
- Communication cycle: 1ms
- Built-in DI/DO 8 points each and EtherCAT I/O 512 points
- Program 2MB
- External encoder input 2ch (line drive)
- Max. transmission distance: 100m
XGT Positioning Module Features (Network type)
- XGF-PN8A: Dedicated LS ELECTRIC EtherCAT Network Support (XGT Servo N series)
- XGF-PN8B: Standard EtherCAT Network Support(Standard EtherCAT Servo)
- Direct connect with servo driver Max 8
- 2~8 axes linear interpolation, 2-axes circular interpolation, 3-axes helical interpolation
- Position, speed, and feed control is possible through the various operation
- Parameters, the operation data stored in the FRAM (No Battery)
- Up to eight different types of CAM data for CAM control
- Available for absolute position system (When applying absolute encoder type)
XGT Positioning Module Features (Pulse type)
- Max 4Axes, Max pulse output 4Mpps
- inear/Circular/ellipse/helical interpolation
- Asymmetric acceleration and deceleration driving
- Speed control, position control, speed/position control, position/speed control, Feed, CAM control
- FRAM parameter
- XG-PM monitoring, simulation, trace
- CAM profile program

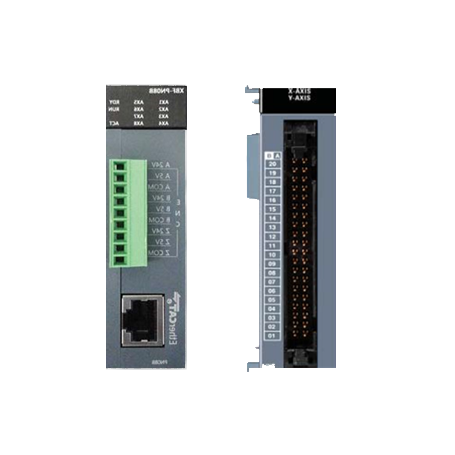

XGB Motion & Positioning module
XGB Positioning Module (Network type)
- Direct connection with servo driver Max 8
- 2~8 axes linear interpolation, 2-axes circular interpolation, 3-axes helical interpolation
- Position, speed, and feed control is possible through various operations
- Operation data stored in the FRAM (No battery)
- Up to eight different types of CAM data for CAM control
- Available for absolute position system (When applying an absolute encoder)
XGB Positioning Module (Pulse type)
- Max 2Axes, Max pulse output 4Mpps
- inear/Circular interpolation
- Asymmetric acceleration and deceleration driving
- Speed control, position control, speed/position control, position/speed control
- XG 5000 monitoring, simulation, trace

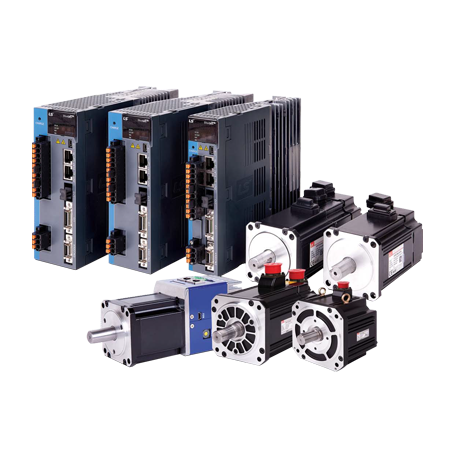

Servo Drive
Your motion systems visualize the perfect solution though the LS comprehensive product range for optimal drives and applications. It's high-performance vector, precision, and speed control are user-friendly and cost effective.

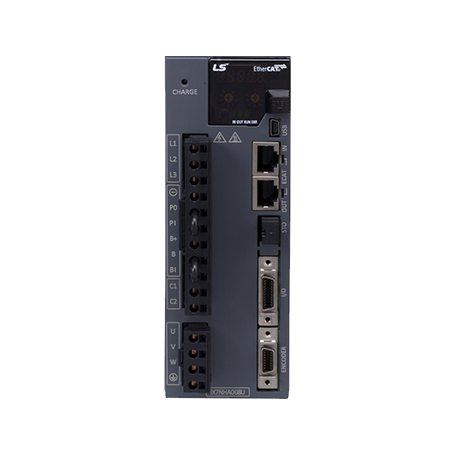

iX7NH
-
Compact & Space-Saving Design
Highly efficient heat dissipation allows zero-stack installation and reduced depth, making setup easier and more compact. -
Enhanced Encoder & Control Capabilities
Supports various high-resolution encoders (BiSS, Quadrature, Tamagawa, EnDat 2.2, SSI, dan lainnya), including temperature monitoring and advanced fault detection. -
Fast Control Cycle Performance
High-speed control cycles for precise position, speed, and current regulation, enhancing motion accuracy. -
Flexible Communication Support
Built-in support for EtherCAT and Modbus TCP, enabling real-time communication and remote commissioning. -
USB OTG Functionality
Parameter backup, restoration, alarm history backup, and firmware update can be done easily via USB flash drives. -
Built-in Web Server
Embedded web server allows access and configuration via a browser without additional setup software.

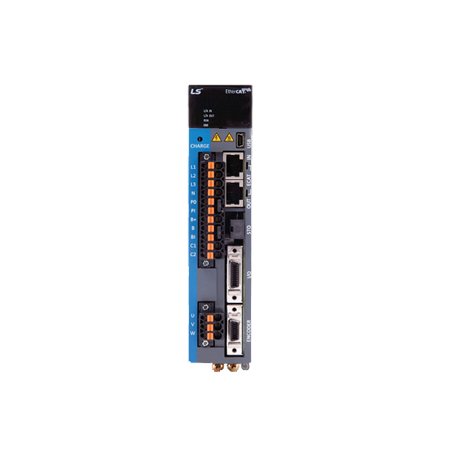

L7NH
Real-time control through EtherCAT
- High speed, Real-time capability and Synchronization mechanism
- Improved EtherCAT communication speed (min. 250us, DC support)
- Supporting CoE, EoE and FoE
- Improved Speed Response(≒1kHz) Frequency
Support various motor and Encoder drive
- Supporting Rotary, DD and Motor drive (supporting3rd party motor)
- Quadrature, BiSS-C, Tamagawa serial abs, EnDat 2.2, Resolver
Improved Control Performance
- Improved Control bandwidth
- Providing 4-step Notch-Filter
- Vibration control by Real-time FET
- Real-time gain tuning function

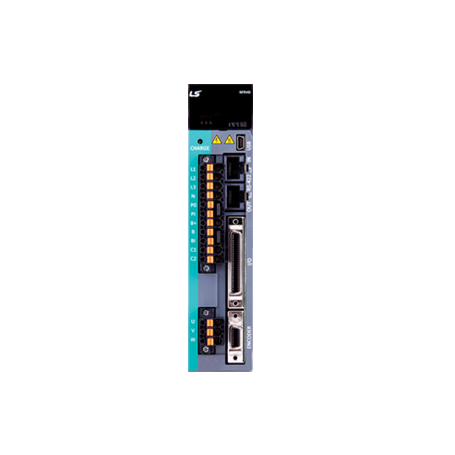

L7P
Provides a built-in program function for single axis position determination module
- Supports position control mode by pulse input
- Position control mode
- Possible to use without upper controller
- Modbus RTU Protocol (RS-422)
Supports various motor and encoder drives
- Supports Rotary, DD, and motor drive (supporting 3rd party motors)
- Quadrature, BiSS-C, Tamagawa serial abs, EnDat 2.2, Resolver
Improved Control Performance
- Improved control bandwidth
- Provides 4-step Notch-Filter
- Vibration control by Real-time FET
- Real-time gain tuning function

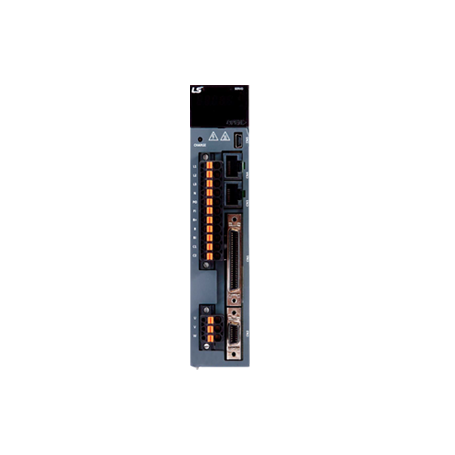

L7S
Easy to USE
- Easy Gain Tuning with Automatic Inertia Estimating Function
- Easy Setting Built-in Panel Operator
- Many I/O Contacts and Various Functions
(Digital Input: 10 contacts, Digital Output:8 contacts / Analog input, output : 2 contacts) ]
Reliability for Protection Function
- CE, RoHS Certificated
- Drive Protection Function and Warn Function
High Response for Precision Control
- High Resolutions Serial type Encoder (19Bit, BiSS)
- Improved Speed Response (≒1Khz) Frequency

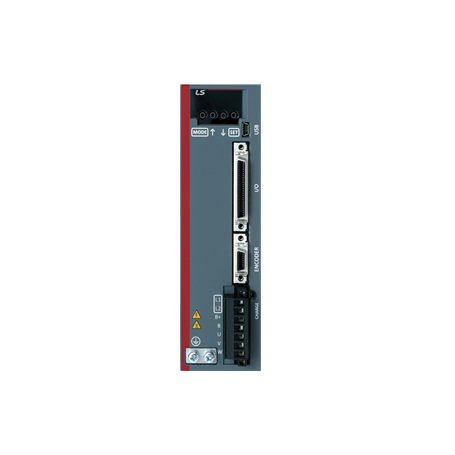

L7C
Control Power/Main power unification
- Unification of power for integrated control board and power board
- 0.1~1kW Drive Line-up for single phase AC220V support
Optimal System implementation with competitive cost ratio
- Unification of power for integrated control board and power board
Maintain and improve L7S specification
- Compatibility with existing L7S I/O pin map
- Maintain current control cycle (10kHz), speed/position control cycle (5kHz)
- Added operation mode (indexing mode) and improved memory (1MB)

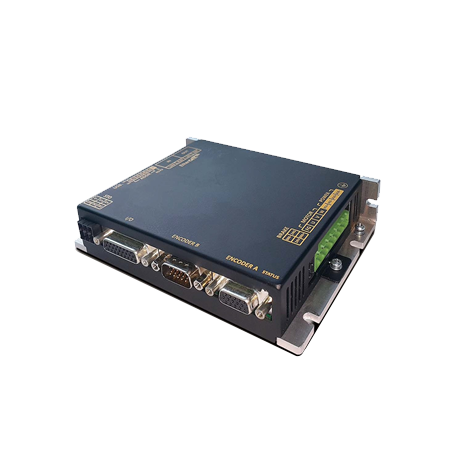

PHOX
Real-time control through EtherCAT
- High speed, real-time capability, and synchronization mechanism
- Supports CoE, EoE and FoE
- Improved Speed Response (≒1kHz) Frequency
- Improved communication speed by applying 16bit-bus
Fully-Closed Loop Control
- Switch among Semi-Closed Loop Control, Fully-Closed Loop Control, and Dual Feedback Control
- Fully-Closed Loop Control provides quick response with internal and external encoder position values
- Fully-Closed Loop Control ensures high-precision control during machine operation
Variable Switching Frequency
- 16 / 32 / 48kHz
Programming function includes single-axis position module
- Positioning control mode with pulse inputs
- Provides position control through I/O or HMI without the position control module
- Supports the indexing mode

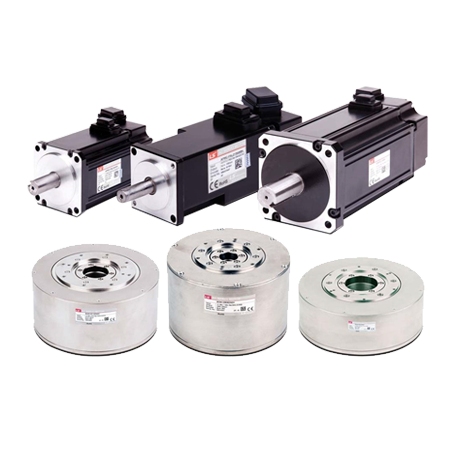

Servo Motor
Reliable partner with global standard performance and easy control by user-centric environment.

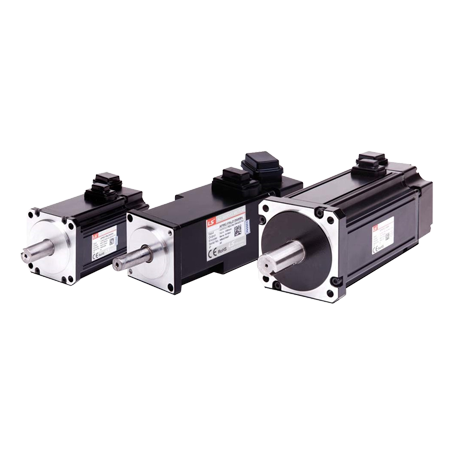

F Series
Encoder with bi-directional high speed serial communication
- Automatic identification (Motor ID/ Encoder pulse)
- Biss protocol
- Easy wiring (15 encoder wires -> 7 encoder wires) and anti-external noise

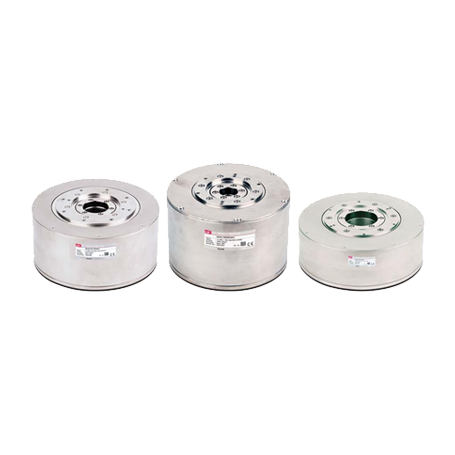

Standard DD Motor
Uses own technology to domestically produce motors, drives, and encoders
Optimized for low-speed, high-torque and high-precision operation
- Provides power connection for the connection of DC-Link Terminal
- Compact size and easy wiring (Compared to the 3-phase AC Reactor)
- Provides connection for DC input (PI, N)
Reduced cogging torque and optimized torque design
- Optimal ratio of the permanent magnet and coil/slot selected through electromagnetic analysis
- Uses multiple permanent magnets to reduce torque ripple and to maximize torque
- Uses a permanent magnet of high-energy rare earth elements (Nd-Fe-B)
Using the high-performance rotary optical encoder that adopts the Biss protocol
- Resolution of 1,048,576 CPR (20bit Single turn)
- Uses our own encoder technology to reduce the cost and shorten the delivery time
Compatible with our L7 Series AC Servo Drive (3phase AC 220V)
- Both standard I/O type (serial communication supported) and network type (EtherCAT) applicable
Direct Drive Structure
-
-
- No backlash impact
- High-precision operation and shortened installation time
- Smooth rotary motion
- Reduced noise
-
DD Motor Flange Type
Uses own technology to domestically produce motors, drives, and encoders
Optimized for low-speed, high-torque and high-precision operation
- Provides power connection for the connection of DC-Link Terminal
- Compact size and easy wiring (Compared to the 3-phase AC Reactor)
- Provides connection for DC input (PI, N)
Reduced cogging torque and optimized torque design
- Optimal ratio of the permanent magnet and coil/slot selected through electromagnetic analysis
- Uses multiple permanent magnets to reduce torque ripple and to maximize torque
- Uses a permanent magnet of high-energy rare earth elements (Nd-Fe-B)
Using the high-performance rotary optical encoder that adopts the Biss protocol
- Resolution of 1,048,576 CPR (20bit Single turn)
- Uses our own encoder technology to reduce the cost and shorten the delivery time
Compatible with our L7 Series AC Servo Drive (3phase AC 220V)
- Both standard I/O type (serial communication supported) and network type (EtherCAT) applicable
Direct Drive Structure
-
-
- No backlash impact
- High-precision operation and shortened installation time
- Smooth rotary motion
- Reduced noise
-

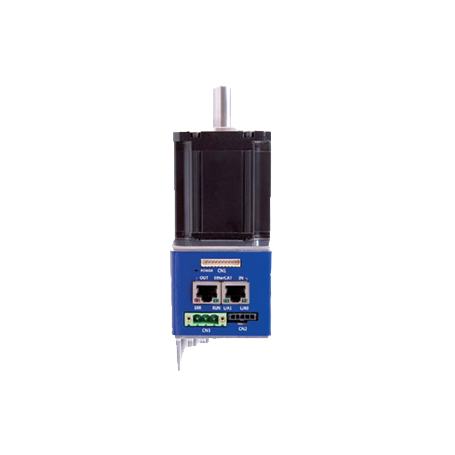

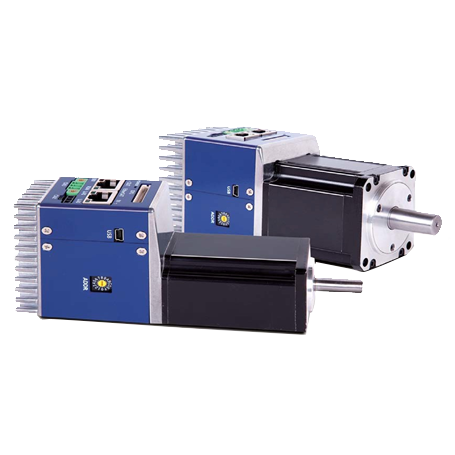

PEGA
Features
- Enhanced efficiency integrated servo system
- Cost effective from installation by integrated system of motor, encoder cable and drive
- Maximizes useful space when installed in limited and small spaces
- High effectiveness for application of multi axis because there is no limitation for space of installation
- Real-time control through EtherCAT
- High speed, real-time capability, and synchronization mechanism
- Improved EtherCAT communication speed
- Supporting CoE, EoE and FoE
